BRACES 3D

Digitizing arms for CAD and CAM applications

Standing Arm

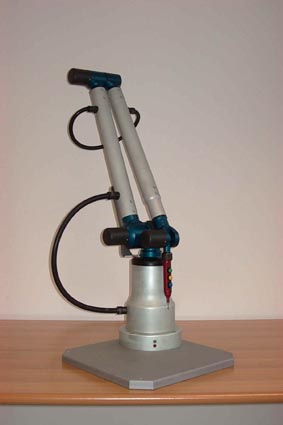

Ideal instrument for the digitization, the arm of measure Baces3D responds to all the requirements of acquisition for sample pieces to elaborate with CAD or to work on CNC machine.

The ergonomic form of the heads and of the probe allows the operator a comfortable hilt of the arm of measure and one easy manipulation.

The internal balancing also guarantees the use of the arm of measure for long periods of work, without tiring particularly the operator.

Standing Arm


Hanging Arm
Hanging Arm

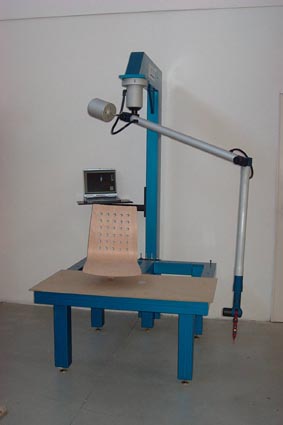

The hangable version of the arm of measure Baces3D allows the complete rotation of the base around the sample piece. This possibility increases the real volume of measure of the arm allowing the acquisition of very bulky details.

The counterweight guarantees an extreme maneuverability of the system. The presence of the buttons probe allows the learning of the sample piece through the use of an only hand.

The support for measuring arm AR represents the ideal solution for a fast and functional installation.



Technical characteristics

ModelAxisDiameterResolution
 SERIE 100
M100 6 2600 mm ± 0.06 mm
G100 6 3200 mm ± 0.09 mm
 SERIE 200
M200 5 2600 mm ± 0.1 mm
G200 5 3200 mm ± 0.15 mm
XG2005 4200 mm ± 0.35 mm
XG2006 4200 mm ± 0.3 mm
 SERIE 200 - Hangable version
G200AR 5 3200 mm ± 0.3 mm
G200AR 6 3200 mm ± 0.25 mm
XG200AR6 4200 mm ± 0.4 mm


Interface : RS232 with DB9-DB9 serial cable
Compatibility : Windows 95, 98, NT, 2000, XP
Waranty : 2 years


Softwares compatibilities

HandyCut

CAM - HandyCut
Offline programming for thermal forming trimming.
Braces 3D is fully compatible with HandyCut.

Rhinoceros

CAD - Rhinoceros
 Free plugin available for direct connection to Rhinoceros 3.
