Microscribe

Microscribe is used to determine great acuracy digital measurements. This metrology tool fits any need: general purpose, Industry, Research, Arts.

S5 Box

Which Microscribe to choose?

The Microscribe system comes in two versions: for general use (G) or highly accurate use (M).

To collect digital data point-by-point or edge-to-edge
Alignment tracker for attached laser scanner or other types of sensitive devices
Available in 2 work sphere diameters: 1m27 or 1m67
Available in 5 or 6 degrees of liberty
6th-axis rotating stylus for the attachement of laser scanners or other sensitive devices

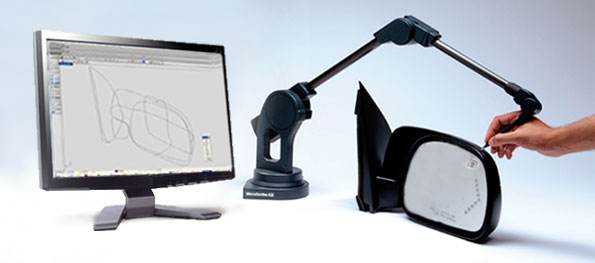

3D Digitizing

Microscribe digitizing system collects the physical properties of three-dimensional items and turns them into 3D models.

Counterbalanced Mechanical Arm for smooth and easy accurate manipulation
Digital Optical Sensors immune from any envoronmental noise and interferences
Versatile system to work in a large variety of environments on all materials

Easy to use

The Microscribe mechanical arm comes in handy: easily portable, it allows for an affordable and easy solution.

Easy-to-use
Reknown tracking technology
Improved data accuracy
Fast and easy data collection and transformation
High-quality components: aircraft aluminium, lightweight graphite, state-of-the art electronics
Optical sensors are immune from any environmental noise and interferences

Compatibility

Compatible with a variety of software, Microscribe is the right tool for your success.

Microscribes

Microscribe G2X

The perfect tool at a perfect price.

The G2 Microscribe system was designed to be both an easy-to-use and affordable tool, as well as to meet a variety of needs in 3D digitizing: from artists, to visual art designers and scientits.

Both a desk tool and a handy field tool
Perfect for a variety of industries: industrial, visual, medical back engineering data collection, model making
Compatible with all kinds of objects and materials
50"or 66" work sphere diameter
Fast and efficient
Robust and precise: ± 0,23mm (G2X) or ± 0,30mm (G2LX) position accuracy
Quality mecanical arm
High quality components: aluminium, graphite
Available in 5 or 6 degrees of freedom

The G2LX model includes all the features of the G2 Microscibe and adds a greater 66" working sphere so as to give you the opportunity to easily work on larger pieces.

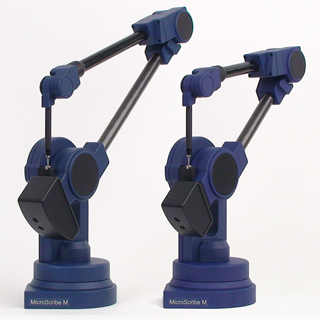

Microscribe MX

Easy & precise Metrology device

Microscribe M system is a highly accurate metrology tool that is yet easy to use, even for field work.

Both a desk tool and a handy field tool
Perfect for highly precise use: back engineering, control...
Compatible with all kinds of objects and materials
2 work spheres available: 50" or 66"
Fast and efficient
Robust and precise: ± 0,0508 mm (MX) or ± 0,0762mm (ML) spherical diameter test
Available in 5 or 6 degrees of freedom

The MLX model includes all the features of the MX Microscibe system and adds a greater 66" working sphere so as to give you the opportunity to easily work on larger pieces.

Comparing

	G2X	G2LX	MX	MLX
Work shere diameter	50"	66"	50"	66"
Degrees of freedom	5 or 6
Position accuracy	± 0.009 in	± 0.012 in
Spherical diameter test (As specified in the ASME B89.4.22 draft specifications for Effective Diameter)			± 0.002 in	± 0.003 in
Weight	3,6 kg	4,1 kg	5,4 kg	6,0 kg
Universal power supply	100V - 240V
Connectivity	USB 1.1 / Serial Port RS-232C		USB 2
OS Compatibility	Windows 2000, XP
Operating Temp	15°C to 35°C
Storage Temp	-20°C to 70°C
Operating humidity	10% to 90% non-condensing
